Volume 4 Supplement 1
Proceedings of the 13th European workshop on QTL mapping and marker assisted selection
Comparison of analyses of the QTLMAS XIII common dataset. I: genomic selection
- John W M Bastiaansen^{1}Email author,
- Marco C A M Bink^{2},
- Albart Coster^{1},
- Chris Maliepaard^{3} and
- Mario P L Calus^{4}
https://doi.org/10.1186/1753-6561-4-S1-S1
© Bastiaansen et al; licensee BioMed Central Ltd. 2010
Published: 31 March 2010
Abstract
Background
Genomic selection, the use of markers across the whole genome, receives increasing amounts of attention and is having more and more impact on breeding programs. Development of statistical and computational methods to estimate breeding values based on markers is a very active area of research. A simulated dataset was analyzed by participants of the QTLMAS XIII workshop, allowing a comparison of the ability of different methods to estimate genomic breeding values.
Methods
A best case scenario was analyzed by the organizers where QTL genotypes were known. Participants submitted estimated breeding values for 1000 unphenotyped individuals together with a description of the applied method(s). The submitted breeding values were evaluated for correlation with the simulated values (accuracy), rank correlation of the best 10% of individuals and error in predictions. Bias was tested by regression of simulated on estimated breeding values.
Results
The accuracy obtained from the best case scenario was 0.94. Six research groups submitted 19 sets of estimated breeding values. Methods that assumed the same variance for markers showed accuracies, measured as correlations between estimated and simulated values, ranging from 0.75 to 0.89 and rank correlations between 0.58 and 0.70. Methods that allowed different marker variances showed accuracies ranging from 0.86 to 0.94 and rank correlations between 0.69 and 0.82. Methods assuming equal marker variances were generally more biased and showed larger prediction errors.
Conclusions
The best performing methods achieved very high accuracies, close to accuracies achieved in a best case scenario where QTL genotypes were known without error. Methods that allowed different marker variances generally outperformed methods that assumed equal marker variances. Genomic selection methods performed well compared to traditional, pedigree only, methods; all methods showed higher accuracies than those obtained for breeding values estimated solely on pedigree relationships.
Background
When methods for selection based on many markers across the genome, or genomic selection, were first described [1] the application of genetic marker data in plant and animal breeding programs was still limited [2]. In subsequent years the use of individual markers in breeding programs has increased [3, 4]. With the availability of assays that provide genotypes for 50,000 or more markers for each individual, the application of genomic selection has started to take hold in recent years. Especially in dairy cattle the use of genomic selection is becoming common practice [5, 6]. In other species the application of genomic selection is being considered or evaluated [7–9].
Methods to deal with these large number of markers in breeding programs were first proposed by [1] after which a number of alternatives have been suggested; e.g. [10, 11]. Most methods have been evaluated in simulations and sometimes on real data. Analyses applying genomic BLUP methodology as defined by Meuwissen et al.[1], or applying Ridge Regression (RR) [12], assume the same variance for each marker. A series of well-known methods are those named BayesA, BayesB, etc. BayesA assumes the same a priori variance for all markers, where effects are drawn from one distribution [1]. BayesB divides the markers in 2 groups: one group that contributes to the genetic variance and have the same a priori non-zero variance, and another group whose effect are supposed to be zero [1]. Another variant, sometimes referred to as “BayesC”, considers two distributions: one with large effect (that are assumed to be linked to a QTL) and one with small effects (that are assumed to be not linked to a QTL) [11, 13].
The organizers of the previous QTL-MAS workshop initiated a comparison of methods using a simulated dataset which resembled a population one might encounter in litter-bearing animals. They concluded that models that include markers as fixed effects were unlikely to provide any gain from the use of markers, while random effects models and especially the Bayesian analyses were most promising [14].
We aimed to compare methods that estimate genomic breeding values (GEBV) in a dataset that one might encounter in both plant and animal breeding programs and added the complexity of repeated measures over time. Participants of the current QTL-MAS workshop 2009 were invited to predict GEBV and describe their methods and results. Predicted GEBV from the different methods were submitted to the QTL-MAS workshop and compared to the simulated or true breeding values (TBV).
Methods
Simulated data
18 QTL were simulated affecting a trait called yield that followed a logistic growth curve. The growth curve was determined by 3 parameters and for each parameter, 6 QTL determined the genetic value with one large QTL (50% of genetic variance) and 5 smaller QTL. Phenotypic values for the parameters were simulated with a heritability of 0.50. Workshop participants were provided with genotypes for a set of biallelic markers that did not include the genotypes for the 18 QTL. Data available to participants of QTLMAS XIII consisted of 100 full-sib families which resulted from factorial mating of 20 female and 5 male parents. Each full-sib family consisted of 20 offspring. Parent-offspring relationships were provided, but relationships between parents were not. All offspring had genotypes for 453 markers, distributed over 5 chromosomes of 1 Morgan each. Phenotypes were provided for the offspring of 50 full-sib families and consisted of cumulative yield values at 5 different points in time, the last time point being 530. Further details of the simulation are described elsewhere [15] and the dataset is available from http://www.qtlmas2009.wur.nl/UK/Dataset.
Best-case analysis
The workshop organizers applied a "best-case" analysis to the simulated data to provide an upper bound of the expected accuracies of the contributed analyses. This best-case analysis made use of additional information which was not provided to the workshop participants. The correct model, a logistic growth curve, was used to estimate 3 growth curve parameters from phenotypes for each individual. More importantly, the true genotypes of the QTL were used. Workshop participants could apply the correct growth model without knowing this was the case, but the actual genotypes could not be used. In the best-case analysis, the true QTL genotypes were used as the only variables in a multitrait fixed regression model to estimate the QTL effects on the 3 growth curve parameters. The estimated growth curve QTL effects were subsequently used to predict breeding value for yield on time point 600 for the unphenotyped individuals.
Prediction strategies
QTLMAS XIII participants were asked to predict breeding values for the unphenotyped offspring (n = 1000) at time point 600. Timepoint 600 was outside the range of time points for which phenotypes were provided. Several strategies could be followed: 1) predict phenotypes at time point 600, using any of several methods, and use these to predict breeding values, 2) use a function to describe the observed phenotypes, predict breeding values for the parameters of this function and use those to calculate EBV at time point 600, 3) predict breeding values for the 5 different time points and use these to extrapolate to time point 600, using any of several methods.
Comparison of predicted breeding values
Accuracies of GEBV, reported by workshop participants on unphenotyped offspring, were calculated as the correlation between the GEBV and the TBV. Bias was assessed from the regression of TBV on the GEBV. The ability of methods to identify the best individuals was assessed from the rank correlations of predicted and TBV of individuals in the top 10% of TBV. Mean squared prediction error was calculated after predicted and TBV were centered on zero. The variances of GEBV were calculated and reported as a proportion of the variance of TBV.
Results
Best-case analysis
The regression model applied directly to the QTL genotypes resulted in the highest accuracy (0.985) and rank correlation (0.935) of GEBV with TBV of unphenotyped individuals. However, regression of TBV on GEBV resulted in a regression coefficient of 0.847, relatively far away from 1 compared to other methods, The variance of GEBV was also higher (34.3) than the variance of the TBV (25.3) and higher than the variance from any other estimation method.
Prediction strategies
All authors applied a procedure with two or three steps. In most cases two steps were used with one step to predict phenotypes or breeding values at time point 600 and one step to estimate genetic effects for the markers. The order of these two steps varied and various methods were applied for both extrapolation to time point 600 as well as for the estimation of marker effects.
Two step strategies
Three authors [16–18] started with predicting phenotypes on time point 600 which were then used to predict breeding values. Phenotypes were predicted using a Logistic model (model 5) or a Gompertz model (models 1 to 4). Predicted phenotypes at time point 600 were subsequently used in single trait analyses to predict EBV at time point 600.
Three authors [19–21] started by predicting EBV in single trait analyses applied to each of the time points at which phenotypes were available and subsequently used those EBV to extrapolate to an EBV at time point 600. Extrapolation to time point 600 was done using quadratic regression (model 6) or linear regression (models 7 to 18). Linear regression models only used the last 3 time points.
Three step strategy
One author [17] (model 19) applied a three step strategy where first a growth model was used, then a model to estimate marker effects and finally again a growth model to predict EBV at time point 600. In step 1 the parameters of a Gompertz model were estimated for each of the individuals with phenotypes. Marker effects were estimated for each of the 3 parameters in the Gompertz model in the second step. The third step used these estimated SNP effects to calculate the EBV of individuals at time point 600.
Comparison of predicted breeding values
Extrapolation, prediction and estimation methods
Step 1 | Step 2 | ||||
Method | Paper | Model | Extrapolation | Prediction | |
1 | Cleveland | Bayes-A | Gompertz | Bayes-A | |
2 | Cleveland | Lasso | Gompertz | Bayes-Lasso | |
3 | Cleveland | Student- t | Gompertz | Bayes-Student-t | |
4 | Pong-Wong | GEBV2 | Gompertz | Bayes-B | |
5 | Schulz-Streeck | Ridge | Logistic | BLUP \ RR | |
Step 1 | Step 2 | ||||
Method | Paper | Model | Prediction | Extrapolation | |
6 | Mucha | SNPL | GRM | quadratic 5 points | |
7 | Veerkamp | 14.SNP | Bayes-C | linear 3 points | |
8 | Veerkamp | BLUP | A matrix | linear 3 points | |
9 | Veerkamp | IBD | Bayes-C | linear 3 points | |
10 | Veerkamp | IBS2 | Bayes-C | linear 3 points | |
11 | Veerkamp | IBS5 | Bayes-C | linear 3 points | |
12 | Veerkamp | SNP1 | Bayes-A | linear 3 points | |
13 | Veerkamp | SNP2 | Bayes-C | linear 3 points | |
14 | Veerkamp | SNP3 | Bayes-C (3dist) | linear 3 points | |
15 | Verbyla | Bayes.BLUP | Bayes | linear 3 points | |
16 | Verbyla | BayesA | Bayes-A | linear 3 points | |
17 | Verbyla | BayesA.B | Bayes | linear 3 points | |
18 | Verbyla | BayesC | Bayes-C | linear 3 points | |
Step 1 | Step 2 | Step 3 | |||
Method | Paper | Model | Estimation | Prediction | Extrapolation |
19 | Pong-Wong | GEBV1 | Gompertz | Bayes-B | Gompertz |
20 | QTLMAS | Best case | Logistic | Regression | Logistic |
Accuracy
Rank correlations

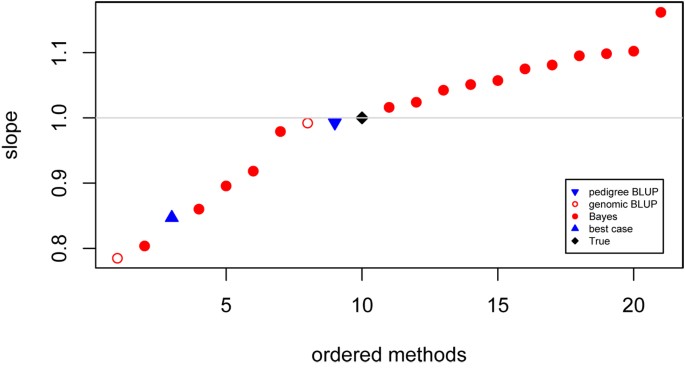

Bias
Results from comparison to simulated breeding values (TBV)
Analysis | Method | Var | Acc | MSEP | Rank | Regr |
0 | TBV | 25.346 | 1 | 0 | 1 | 1 |
1 | Cle_Bayes.A | 26.490 | 0.916 | 4.369 | 0.749 | 0.896 |
2 | Cle_Lasso | 32.909 | 0.916 | 5.337 | 0.716 | 0.804 |
3 | Cle_Student.t | 30.554 | 0.945 | 3.322 | 0.791 | 0.860 |
4 | Pon_GEBV2^{1} | 18.638 | 0.901 | 4.794 | 0.726 | 1.051 |
5 | Sch_EBV600 | 20.354 | 0.889 | 5.303 | 0.700 | 0.992 |
6 | Muc_SNPL | 23.204 | 0.751 | 12.101 | 0.578 | 0.785 |
7 | Vee_14.SNP | 20.166 | 0.930 | 3.460 | 0.764 | 1.043 |
8 | Vee_BLUP | 10.763 | 0.647 | 14.728 | 0.485 | 0.993 |
9 | Vee_IBD | 19.009 | 0.931 | 3.475 | 0.767 | 1.075 |
10 | Vee_IBS2 | 18.344 | 0.932 | 3.504 | 0.816 | 1.095 |
11 | Vee_IBS5 | 19.579 | 0.929 | 3.517 | 0.781 | 1.057 |
12 | Vee_SNP1 | 24.975 | 0.912 | 4.433 | 0.719 | 0.919 |
13 | Vee_SNP2 | 17.974 | 0.925 | 3.828 | 0.793 | 1.098 |
14 | Vee_SNP3 | 17.928 | 0.927 | 3.744 | 0.779 | 1.102 |
15 | Ver_Bayes.BLUP | 20.721 | 0.885 | 5.479 | 0.691 | 0.979 |
16 | Ver_BayesA | 13.783 | 0.857 | 7.092 | 0.696 | 1.162 |
17 | Ver_BayesA.B | 17.124 | 0.889 | 5.435 | 0.730 | 1.081 |
18 | Ver_BayesC | 17.914 | 0.861 | 6.561 | 0.710 | 1.024 |
19 | Pon_GEBV1 | 19.726 | 0.897 | 4.971 | 0.709 | 1.016 |
20 | best_case | 34.256 | 0.985 | 1.572 | 0.935 | 0.847 |
Prediction error
Discussion
2-step and 3-step methods
Accuracy of GEBV from the 3-step method (model 19) was 0.897, which was very similar to the average accuracy, 0.893, of all the other Bayes methods. Because the simulated QTL affect the parameters of the true logistic growth curve it might have been expected that methods that look for associations of markers with these underlying parameters had an advantage. In this dataset this does however not appear to be the case. It was found that extrapolation to time point 600 was not a big challenge because for most individuals this time point was within the part of the growth curve where growth was almost linear. In fact, two authors extrapolated exactly this way, by linear regression on the last three time-points and obtained high accuracies. The impact of methods for extrapolation would have been bigger when a time-point closer to the asymptote would have been chosen. However, extrapolation of the data was a secondary objective of the QTLMAS workshop whereas comparison of methods to obtain GEBV was a primary objective.
Bayes and genomic BLUP methods
QTL contributing to the three parameters of the growth curve were unequal in size. This was expected to favor Bayes methods over genomic BLUP methods that assume the same variance for all markers. This difference was not directly apparent from the results presented in this comparison as one of the genomic BLUP models (model 6) resulted in a lower accuracy (0.751) compared to all other marker methods while the accuracy (0.889) from the other genomic BLUP method (model 5) was higher than some of the Bayes methods. The GEBV from model 6 were obtained using a genetic covariance matrix build from a subset of 90 markers that were selected from only the first of the five chromosomes. The resulting GEBV may have reduced accuracies compared to other methods because not all information was used. However, a method which only selected 14 markers (model 7) still gave a high accuracy (0.930). These 14 markers were selected based on a QTL analysis while the 90 markers selected for model 6 were selected solely on the fact that they map to chromosome one.
Most likely the use of a polygenic component increased the accuracy of model 5. While a polygenic component was not used by model 6, some of the Bayes methods did include polygenes (models 7 to 18). In addition to the relatively high accuracy, the best genomic BLUP model (model 5) produced unbiased GEBV where many of the other methods showed moderately to severely biased results.
The structure of the data was such, that full sib families were either completely genotyped, or completely not genotyped. This structure was chosen, to avoid that models would benefit too much from close relationships between the animals in the training and validation data. The larger the distance between training and validation, the more emphasis on LD information to predict GEBV of animals without phenotypes [24]. Bayes methods can employ LD to focus variance on specific parts of the genome, where genomic BLUP methods only employ the genomic relation over the whole genome. Therefore, in addition to the small number of QTL with relatively large effect, most likely the population structure was also more beneficial for the Bayes compared to the genomic BLUP models.
Number of markers included in the model
The proportion of markers, π, selected into the model or into the distribution of large marker effects was reported by Pong-Wong and found to be relatively high, even close to 1 for one of their methods where they tried to let the model decide on the value of π . Nevertheless, the proportion of markers that was included in the distribution of markers with large effect in more than half of the cycles (i.e. that had a posterior probability > 0.5), was limited. The posterior proportions in the various distributions were not reported by the other authors. Results obtained with a method that solely included 14 markers (model 7) show that very high accuracies could be obtained, at least in this dataset, with a small number, and a small proportion of the total number of markers selected into the model. The 14 SNPs included in model 7 were selected based on their association with the phenotype and analysed with a Bayes model. Preselection of SNPs and analysing them as fixed effects has not been considered by any of the participants. Results from QTLMAS comparison in 2008 [14] as well as the first comparison to genomic BLUP, BayesA and BayesB [1] already showed a low accuracy for these fixed effects models which can be expected when many markers are available to be selected into the model.
Conclusions
Accuracies of GEBV were always higher than those estimated based on pedigree alone (model 8). Methods that allow different variances of markers generally performed better than genomic BLUP methods that assume equal variance for all markers but differences were not very large, except when only a portion of the genome was used (model 6). The best Bayes method achieved an accuracy that was 0.056 higher than the best genomic BLUP method. The simulated QTL varied strongly in size which will have favored the Bayes methods in the comparison of accuracies between the two types of methods. The highest accuracies obtained were very close to those from the best case analysis, where knowledge about QTL genotypes was used. Methods to extrapolate to time point 600 from the observed phenotypes at time points up to 530 appear to have had a minor impact on the accuracies of GEBV.
Declarations
Acknowledgement
This article has been published as part of BMC Proceedings Volume 4 Supplement 1, 2009: Proceedings of 13th European workshop on QTL mapping and marker assisted selection.
The full contents of the supplement are available online at http://www.biomedcentral.com/1753-6561/4?issue=S1.
Authors’ Affiliations
References
- Meuwissen THE, BJ Hayes, ME Goddard: Prediction of Total Genetic Value Using Genome-Wide Dense Marker Maps. Genetics. 2001, 157: 1819-1829.PubMed CentralPubMedGoogle Scholar
- Dekkers JCM, F Hospital: The use of molecular genetics in improvement of agricultural populations. Nat. Rev. Genet. 2002, 3: 22-32. 10.1038/nrg701.View ArticlePubMedGoogle Scholar
- Dekkers JCM: Commercial application of marker- and gene-assisted selection in livestock: Strategies and lessons. Anim. Sci. 2004, 82: E313-E328.Google Scholar
- Rothschild MF, GS Plastow: Impact of genomics on animal agriculture and opportunities for animal health. Trends Biotechnol. 2007, 26: 21-25. 10.1016/j.tibtech.2007.10.001.View ArticlePubMedGoogle Scholar
- Schaeffer LR: Strategy for applying genome-wide selection in dairy cattle. J. Anim. Breed. Genet. 2006, 123: 218-223. 10.1111/j.1439-0388.2006.00595.x.View ArticlePubMedGoogle Scholar
- Hayes BJ, PJ Bowman, AJ Chamberlain, ME Goddard: Genomic selection in dairy cattle: Progress and challenges. J. Dairy Sci. 2009, 92: 433-443. 10.3168/jds.2008-1646.View ArticlePubMedGoogle Scholar
- Heffner EL, ME Sorrells, JL Jannink: Genomic Selection for Crop Improvement. Crop Sci. 2009, 49: 1-12. 10.2135/cropsci2008.08.0512.View ArticleGoogle Scholar
- Gonzalez-Recio O, D Gianola, N Long, KA Weigel, GJM Rosa, S Avendano: Nonparametric Methods for Incorporating Genomic Information Into Genetic Evaluations: An Application to Mortality in Broilers. Genetics. 2008, 178: 2305-2313. 10.1534/genetics.107.084293.PubMed CentralView ArticlePubMedGoogle Scholar
- Bernardo R, J Yu: Prospects for Genomewide Selection for Quantitative Traits in Maize. Crop Sci. 2007, 47: 1082-1090. 10.2135/cropsci2006.11.0690.View ArticleGoogle Scholar
- Gianola D, RL Fernando, A Stella: Genomic-assisted prediction of genetic value with semiparametric procedures. Genetics. 2006, 173: 1761-1776. 10.1534/genetics.105.049510.PubMed CentralView ArticlePubMedGoogle Scholar
- Meuwissen THE, ME Goddard: Mapping multiple QTL using linkage disequilibrium and linkage analysis information and multitrait data. Genet. Sel. Evol. 2004, 36: 261-279. 10.1186/1297-9686-36-3-261.PubMed CentralView ArticlePubMedGoogle Scholar
- Xu S: Estimating polygenic effects using markers of the entire genome. Genetics. 2003, 163: 789-801.PubMed CentralPubMedGoogle Scholar
- Calus MPL, THE Meuwissen, APWde Roos, RF Veerkamp: Accuracy of Genomic Selection Using Different Methods toDefine Haplotypes. Genetics. 2008, 178: 553-561. 10.1534/genetics.107.080838.PubMed CentralView ArticlePubMedGoogle Scholar
- Lund MS, G Sahana, DJ de Koning, G Su, O Carlborg: Comparison of analyses of the QTLMAS XII common dataset. I: Genomic selection. BMC Proceedings. 2009, 3 (Suppl 1): S1-10.1186/1753-6561-3-s1-s1.PubMed CentralView ArticlePubMedGoogle Scholar
- Coster A, JWM Bastiaansen, M Calus, C Maliepaard, M Bink: QTLMAS 2009: Simulated dataset. BMC Proceedings. 2010, 4 (Suppl 1): S3-10.1186/1753-6561-4-S1-S3.PubMed CentralView ArticlePubMedGoogle Scholar
- Cleveland MA, S Forni, N Deeb, C Maltecca: Genomic breeding value prediction using three Bayesian methods and application to reduced density marker panels. BMC Proceedings. 2010, 4 (Suppl 1): S6-10.1186/1753-6561-4-S1-S6.PubMed CentralView ArticlePubMedGoogle Scholar
- Pong-Wong R, G Hadjipavlou: A two-step approach combining th Gompertz growth model with genomic selection for longitudinal data. BMC Proceedings. 2010, 4 (Suppl 1): S11-10.1186/1753-6561-4-s1-s4.View ArticleGoogle Scholar
- Schulz-Streeck T, H-P Piepho: Genome-wide selection by mixed model ridge regression and extension based on geostatistical models. BMC Proceedings. 2010, 4 (Suppl 1): S8-10.1186/1753-6561-4-S1-S8.PubMed CentralView ArticlePubMedGoogle Scholar
- Veerkamp RF, K Verbyla, HA Mulder, MPL Calus: Simultaneous QTL detection and genomic breeding value estimation using high density SNP chips. BMC Proceedings. 2010, 4 (Suppl 1): S9-10.1186/1753-6561-4-s1-s9.PubMed CentralView ArticlePubMedGoogle Scholar
- Mucha S, A Wolc, T Strabel: Comparison of methods for estimation of genetic covariance matrix from SNP or pedigree data utilised to predict breeding value. BMC Proceedings. 2010, 4 (Suppl 1): S7-10.1186/1753-6561-4-s1-s7.PubMed CentralView ArticlePubMedGoogle Scholar
- Verbyla KL, PJ Bowman, BJ Hayes, ME Goddard: Sensitivity of Genomic Selection to using different prior distributions. BMC Proceedings. 2010, 4 (Suppl 1): S5-10.1186/1753-6561-4-S1-S5.PubMed CentralView ArticlePubMedGoogle Scholar
- Goddard M: Genomic selection: prediction of accuracy and maximization of long term response. Genetica. 2008, doi:10.1007/ s10709-008-9308-0.Google Scholar
- Muir WM: Comparison of genomic and traditional BLUP-estimated breeding value accuracy and selection response under alternative trait and genomic parameters. J. Anim. Breed. Genet. 2007, 124: 342-355. 10.1111/j.1439-0388.2007.00700.x.View ArticlePubMedGoogle Scholar
- Habier D, RL Fernando, JCM Dekkers: The Impact of Genetic Relationship information on Genome-Assisted Breeding Values. Genetics. 2007, 177: 2389-2397.PubMed CentralPubMedGoogle Scholar
